8HP Epoxy Potting Compound for Turbolamik PCB Installation.

This 5 buttons CAN Keypad is perfect for a 8HP transmission swap!

It feels extremely tactile and can light up a variety of colors.

Can be mounted horizontally or vertically, buttons are removable and are interchangeable and can be rotated 90°

Includes button inserts as shown (others available)

5 Button:
PRND and a customizable button that can be used for LC or mode change.

4 wire Deutsch connector:
12V+
Ground
CAN H
CAN L

https://media.blinkmarine.com/pkp-1500-li-canopen-um

Made to fit the Dodge 8HP shifter, if using another CAN shifter, the connector needs to be cut and changed.
The OBD connector is there for future flash/tuning purposes.
1800mm between the shifter and the GT150 connector.
2100mm between the 8HP connector and the GT150 connector.

Toyota Supra MKIV Clutch Simulator Kit
Include clutch position sensor with bracket and connector and clutch simulator with clutch master delete plate.

8HP Vent/Breather with filter

Lexus IS300 2JZ Engine bracket for Dodge 8HP70 8HP45 swap
Made of Stainless 304 tig welded.
Adjustable for original motor location or forward location for 8HP Swap.
There are 2 sets of holes to lower the engine 1/2 inches if needed.
Comes with bolts (8) for engine bracket and 2 bolts for motor mount.

Dodge 8HP70 to Lexus IS300 Driveshaft aluminium with 1350 joints. Toyota 4 bolts Differential adapter is required

Dodge 8HP70/45 to Lexus IS300 Driveshaft aluminum with 1310 joints. Direct bolt on to factory differential.
No diff adapter required

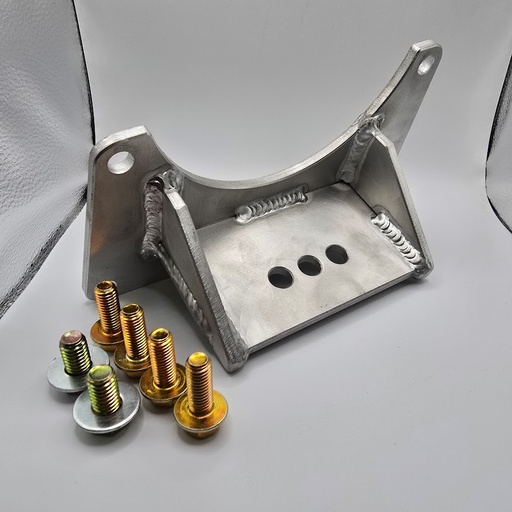

Bolt-on transmission mount kit with crossmember for the Lexus IS300

What's included:
- Crossmember and spacers
- Transmission side bracket
- Polyeurethane Bushing
- All the necessary hardware

Our kit allows you to adapt nearly all 2015+ Dodge 8HP transmissions to any flavor of LS Gen III and Gen IV engine you like (including the long crank LQ4!)

What's included:
​- Adapter plate
- Torque adapter with centering hub adapter
- All the necessary hardware
- Instructions (WIP)

What you'll need:
- An OEM Ring gear: 11.5" or 10.75" 168 tooth (ATP Z498 or Z269)
- OEM or ARP flex plate bolts (new ones are strongly recommended)
- Non-shrouded LS Starter

Protect your 8HP transmission before it’s too late. These transmissions are known to suffer damage when driven hard over 100°C. Whether you're launching, drifting, or tracking your car, high temps will destroy internal components fast.

This heavy-duty oil cooler with fans is designed specifically to keep your transmission operating safely under stress. Ideal for modified vehicles or anyone planning to push their 8HP beyond stock limits.

5.75in x 13in x 2in thick cooler.
5 inches thick with the fans
-10AN ORB
Dual 315CFM Fans for 630CFM total

Lexus SC300 Clutch Simulator Kit
Include clutch position sensor with bracket and connector and clutch simulator with clutch master delete plate.

We are proud to release a complete bolt-on transmission mount kit with crossmember for the JZA80 Supra, SC3/400, and Soarer.

***THIS KIT WORKS EXCLUSIVELY WITH THE DODGE CHARGER/CHALLENGER 8HP45***

What's included:
- Crossmember and spacers
- Transmission side bracket
- Polyeurethane Bushing
- All the necessary hardware

8HP All variant Oil Pan Gasket

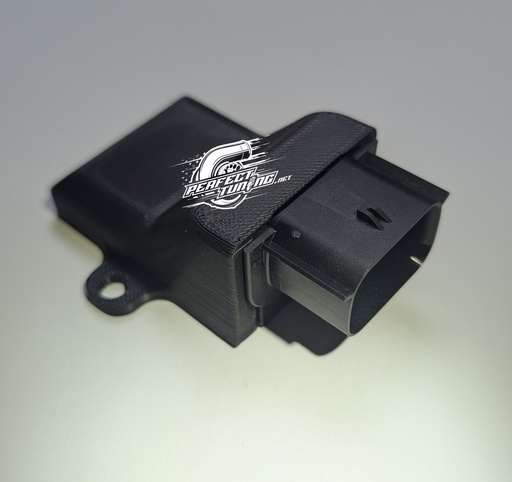

This is the Perfect Tuning CANBus Shifter module recommended to use with the Perfect Tuning Sequential shifter.

This module replace the need of a gear selector when using a a sequential shifter or shift paddles with a MaxxECU controlling a 8HP transmission.

Compatible with Dodge 8HP45 RWD from Charger, Challenger, 300c.

Includes:
- Transmission plate
- Energy Polyurethane Bushing
- Necessary hardware

This option does not include ANY crossmember.

8HP Firmware Flash Service done by us at Perfect tuning instead of renting the flash tool

Build your very own 8HP swap kit!

You can pick and choose any of our products available for your car. Contact us if you have any questions or comments.

You can view our swap guide here:
https://www.8hptheworld.com/a80-supra-guide
