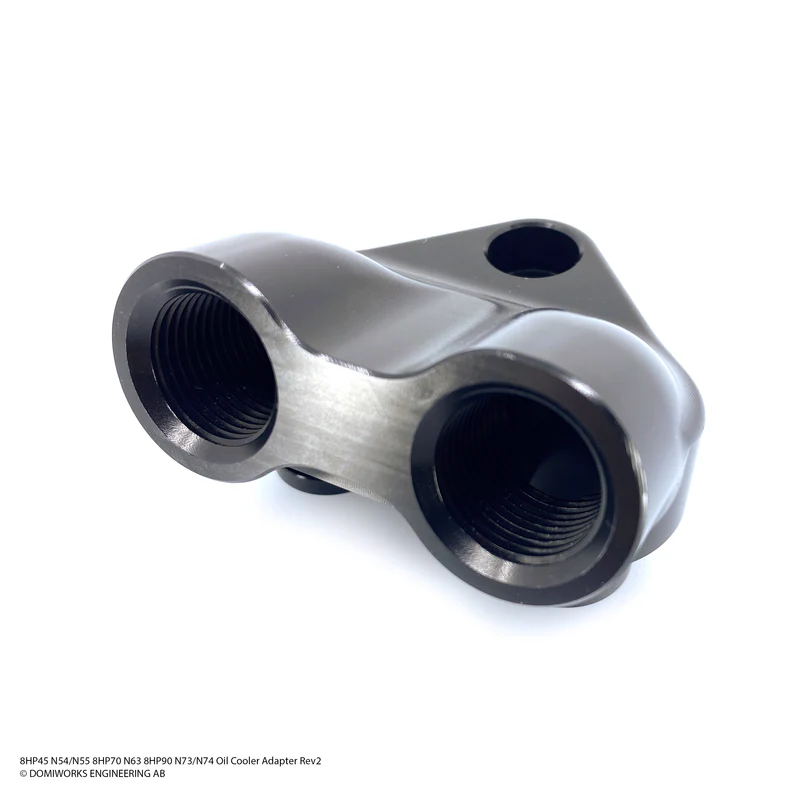

Domiworks 8HP Oil Cooler Adapter N54/N55 N63 N73/N74 Type 2

8HP Oil Cooler Adapter for 8HP45 N54/N55, 8HP70 N63 and 8HP90 N73/N74

An updated slimmer and lightweight design to follow the gearbox as close to the body as possible. Converts the gearbox oil outputs to two AN8 threaded outputs, thread 3/4-16.

Use any ORB8 fittings to suit your application. High quality AN8 fittings are available separately.

Made from high grade aluminium with a smooth 5-axis CNC-machined finish. Big bore internal oil passages help ensure maximum flow. Anodized black and laser engraved for a premium feel and experience.

This adapter has 18 mm bores, offset holes and an M8 mounting bolt. Comes with bolt and O-rings.

If you are unsure of the correct sized adapter you need, contact Domiworks.

Verified so far on: 8HP45 N54/N55, 8HP70 N57, 8HP70 N63, 8HP75 B57, 8HP90 N73/N74.

Transmission fluid should not exceed 140°C.
