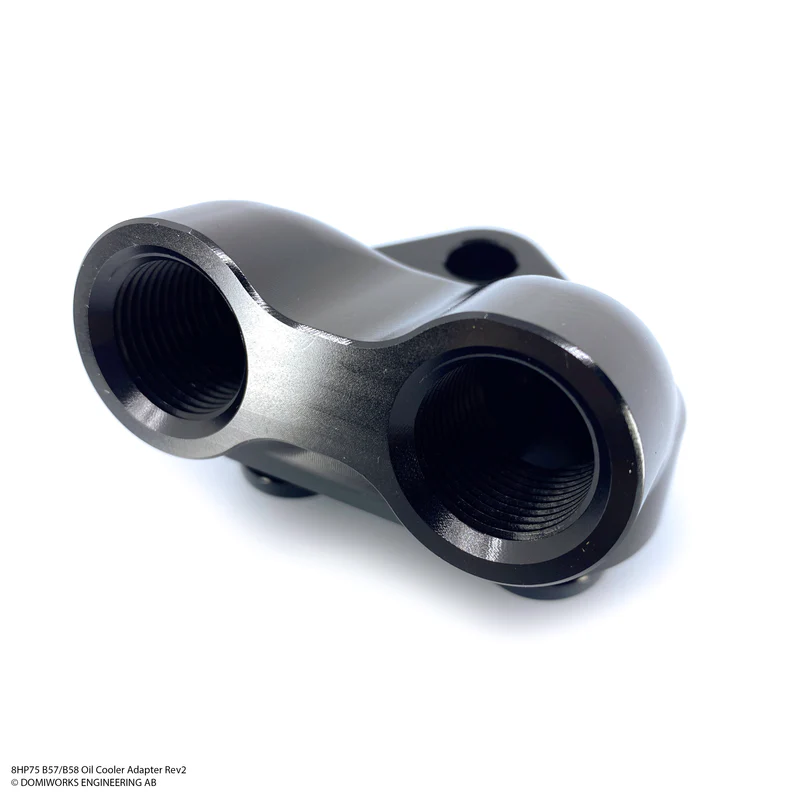

Domiworks 8HP Oil Cooler Adapter B57 Type 3

8HP Oil Cooler Adapter for 8HP75 B57

An updated slimmer and lightweight design to follow the gearbox as close to the body as possible. Converts the gearbox oil outputs to two AN8 threaded outputs, thread 3/4-16.

Use any ORB8 fittings to suit your application. High quality AN8 fittings are available separately.

Made from high grade aluminium with a smooth 5-axis CNC-machined finish. Big bore internal oil passages help ensure maximum flow. Anodized black and laser engraved for a premium feel and experience.

The 8HP75 B57 uses 18 mm bores, no offset holes and an M6 mounting bolt. Comes with bolt and O-rings.

If you are unsure of the correct sized adapter you need, contact Domiworks.

Verified so far on: 8HP45 N54/N55, 8HP70 N57, 8HP70 N63, 8HP75 B57, 8HP90 N73/N74.

Transmission fluid should not exceed 140°C.
