Download manual and config file here: https://drive.google.com/file/d/1FuP0mNnSD0AHA9EK_xfyOnuc2VWOckuz/view?usp=sharing
See the module in action:

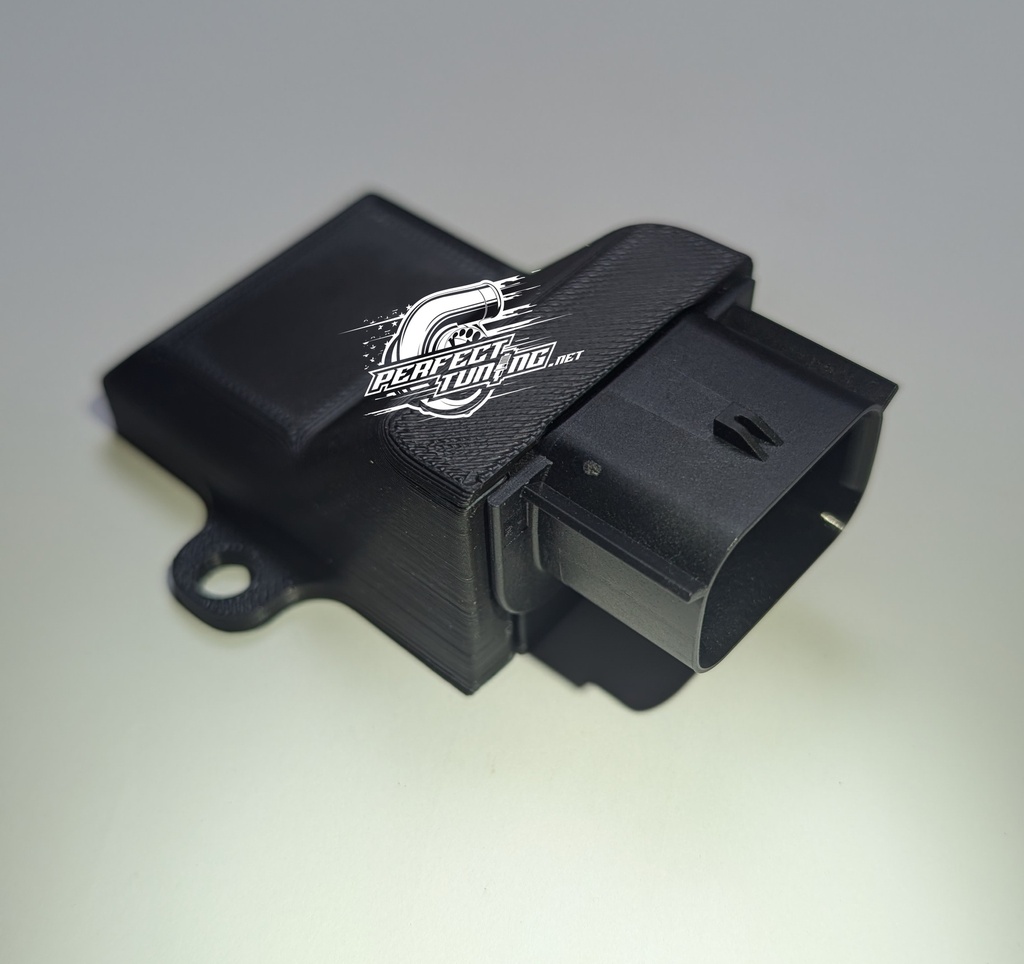

Transform your 8HP transmission swap into a seamless, manual-like experience with the Perfect Tuning CANBus Shifter Module. Designed for use with MaxxECU-controlled 8HP transmissions, this module eliminates the need for a traditional gear selector when paired with a sequential shifter or shift paddles.
Key Features
- Effortless Gear Control: Utilizes two digital inputs (up and down) from a sequential shifter or shift paddles to simulate Park, Reverse, Neutral, Drive, Manual, and Launch Mode.
- Smart Mode Transitions:
- Starts in Park for safety and consistency.
- In Park or Neutral:
- Double downshift: Switches to Reverse.
- Double upshift: Activates Manual Mode.
- Single upshift: Engages Drive Mode (Auto).
- Long downshift: Returns to Park.
- In 1st or 2nd gear: Hold upshift to enable Launch Mode (works in both Auto and Manual modes).
- Configurable CANBus: Includes a jumper for a 120-ohm CANBus resistor (disabled by default) for flexible setup.
- Diagnostic LED: Located on the back, the LED displays red when CANBus communication fails and green when it's operational.
Why Choose the CANBus Shifter Module?
Perfect for enthusiasts looking to maintain a manual car's aesthetic and feel while upgrading to an 8HP transmission. Pair it with Perfect Tuning’s Sequential Shifter for a professional-grade driving experience, ideal for track days, street builds, or custom projects.
UpShift and DownShift pins are active when grounded.

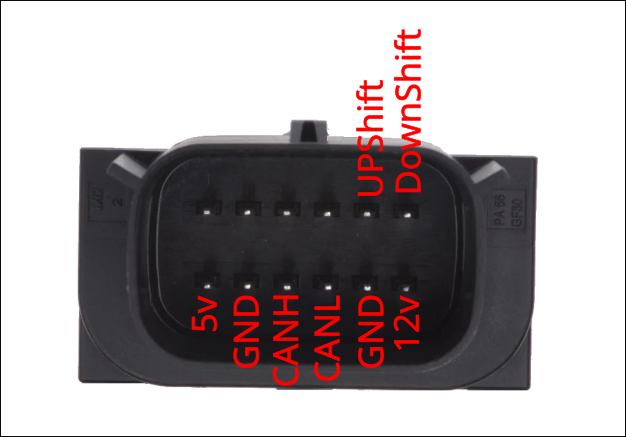

Pinout:
