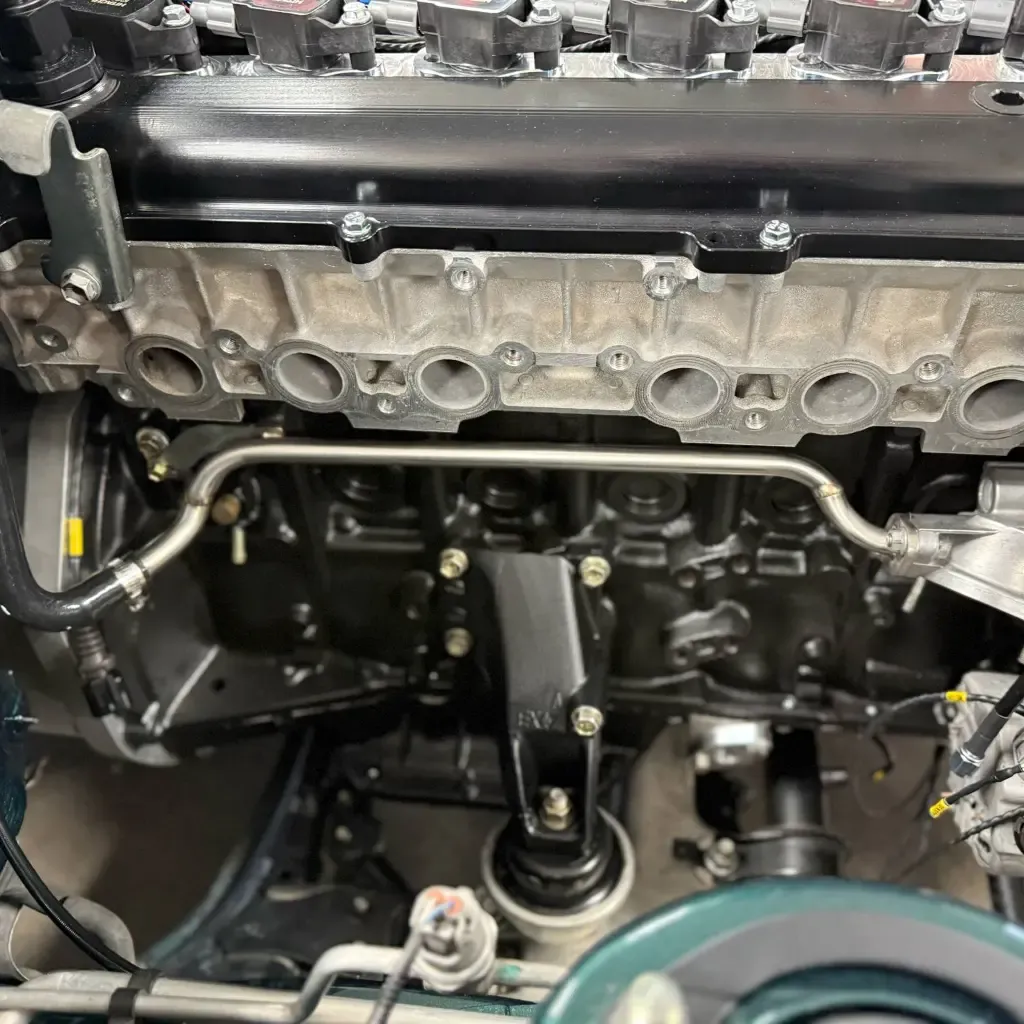

PHR Heater Return Pipe for 2JZ-GTE

The PHR heater return pipe replaces the bulky factory 2JZ-GTE heater return routing with a compact 304 stainless-steel pipe designed to improve clearance around single-turbo manifolds and downpipes.

• Bolt-on pipe; no welding required.
• Smaller-diameter heater-core flow path and tucked routing.
• Designed around the A80 Supra. PHR also confirms IS300 and GS300 applications when paired with the appropriate PHR GTE heater-hose conversion kit.

Installation requirements: The factory twin turbos and OEM oil cooler must be removed. Cap or plug the unused water-pump twin-turbo inlet and the IACV/throttle-body coolant return port on the intake side of the cylinder head. Select the correct heater hose kit for your chassis; it is not included in this pipe listing.

Engine selection: This listing is for PHR's 2JZ-GTE version (PHR 01010651). PHR offers a separate 2JZ-GE version with an adapting bracket; do not order this GTE part expecting the GE bracket.
